LifeGuard Pond Liner is Anjon Manufacturing's own EPDM rubber liner line, built specifically for koi ponds, water gardens, waterfalls and retention basins — not a general-purpose tarp repurposed for ponds. EPDM rubber contains no plasticizers, so it stays flexible through freeze-thaw cycles and years of direct sun exposure instead of turning brittle and cracking the way vinyl and lower-grade plastic liners eventually do. Every liner is certified fish and wildlife safe by Guardian Systems, Inc., and the lineup runs from a 45-Mil liner for most residential builds up to a 60-Mil option and UnderGuard underlayment combos for heavy-duty and commercial installations. Buy the liner with its matching underlayment and the warranty steps up from 25 years to a Limited Lifetime Warranty.
What sets LifeGuard EPDM apart from a generic pond tarp.
Real EPDM rubber, manufactured domestically — not plastic imported and marketed as EPDM.
Certified by Guardian Systems, Inc. — safe for koi, turtles and aquatic plant life.
No plasticizers means the liner stays flexible year-round instead of turning brittle like vinyl.
25 years on the liner alone, upgraded to a Limited Lifetime Warranty when paired with the UnderGuard underlayment.
Lays flat and conforms to curves and planting shelves — doable solo, easier with two people.
Sold in hundreds of pond kits and installed in thousands of water features worldwide.
The decisions that come before choosing a liner.
Koi grow large and eat many aquatic plants, so a koi pond needs more room and depth than a water garden. A common rule of thumb is at least 1,000 gallons and 3-4 ft. of depth per fish — deeper is better, since koi need somewhere to retreat from summer heat, winter cold and predators.
Built around goldfish and a mix of aquatic plants, a water garden can work in a shallower, smaller footprint — commonly 18-24 in. deep in a mild climate. In a region with hard winters, the deepest section should sit below the local frost line so it doesn't freeze solid.
Four liner configurations covering everything from a first backyard water garden to a heavy-duty commercial build.
The foundation of the LifeGuard lineup: a 45-mil EPDM rubber liner built for koi ponds, water gardens, waterfalls and retention basins. Unlike vinyl or plastic liners, EPDM rubber contains no plasticizers, so it stays flexible instead of turning brittle and cracking over the years, and it can be left directly exposed to sunlight without a cover. It folds easily into corners and around planting shelves, attaches cleanly to skimmers and filters, and accepts pipe penetrations without leaking. Backed by a 25-year manufacturer's warranty and sold in sizes from 5×5 ft. boxed liners up to 50×200 ft. rolls.
Dozens of width × length combinations in between — pictured here: 10 ft. x 10 ft.
The same EPDM rubber formula as the 45-mil liner, in a thicker 60-mil sheet for jobs that need extra margin: large boulders resting directly on the liner, heavy wildlife traffic, or bigger commercial-scale water features. It carries the same 25-year warranty, the same puncture and UV resistance, and the same fish-and-wildlife safety certification — just more material underfoot for professional installers who want the extra buffer.
Dozens of width × length combinations in between — pictured here: 10 ft. x 15 ft.

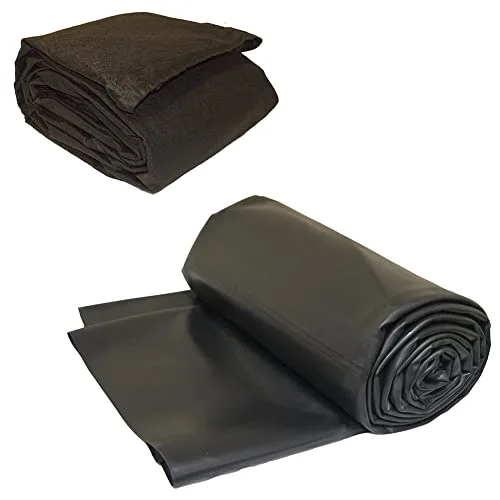

Pairs the 45-mil EPDM liner with LifeGuard's own UnderGuard geotextile underlayment — a padding layer that goes down first to protect the rubber from sharp rocks, roots and gravel in the excavation. Buying the two together upgrades the warranty from 25 years to a Limited Lifetime Warranty, and it's the combination Anjon Manufacturing itself recommends for most residential and landscape builds.
Dozens of width × length combinations in between — pictured here: 10 ft. x 20 ft.
The heavy-duty 60-mil liner paired with the UnderGuard geotextile underlayment — extra liner thickness on top of an extra protective base layer, for builds where both matter most: large boulder placements, high-traffic wildlife ponds, or long-term commercial installations. Backed by the same Limited Lifetime Warranty as the 45-mil combo.
Dozens of width × length combinations in between — pictured here: 10 ft. x 20 ft.
| 45-Mil EPDM | 60-Mil EPDM | 45-Mil EPDM + Underlayment | 60-Mil EPDM + Underlayment | |
|---|---|---|---|---|
| Life Expectancy | 25 Years | 25 Years | Limited Lifetime | Limited Lifetime |
| Weight | 0.30 lbs/sq ft | 0.40 lbs/sq ft | 0.41 lbs/sq ft | 0.41 lbs/sq ft |
| Includes Underlayment | No | No | Yes — UnderGuard Geotextile | Yes — UnderGuard Geotextile |
| Smallest Size | 5 ft. x 5 ft. | 5 ft. x 5 ft. | 5 ft. x 5 ft. | 5 ft. x 5 ft. |
| Largest Size | 50 ft. x 200 ft. | 50 ft. x 150 ft. | 50 ft. x 200 ft. | 50 ft. x 150 ft. |
| Best For | Most Water Features | When You Want The Best | Most Water Features | When You Want The Best |
| Customer Rating | 4.5 (680) | 4.6 (27) | 4.7 (291) | 4.3 (29) |
A quick guide from the manufacturer's own recommendations — match your situation to a liner and the extras it actually needs.
| Your Situation | Recommended Liner | Recommended Extras |
|---|---|---|
| First backyard water garden or small koi pond (up to ~10 x 15 ft.) | 45-Mil EPDM | None required — the liner alone carries a 25-year warranty. |
| Rocky soil, tree roots nearby, or you want the longer warranty | 45-Mil or 60-Mil Combo | The UnderGuard underlayment upgrades the warranty to a Limited Lifetime. |
| Large boulders resting on the liner, heavy wildlife traffic, or a commercial build | 60-Mil EPDM | Pair it with the Underlayment Combo for the maximum protection tier. |
| Pond wider than one liner roll, or joining two sheets | Any liner | Seam Kit (25/50/100 ft.) to bond the sheets into one continuous piece. |
| Liner needs to seal around a skimmer, waterfall filter, or pipe | Any liner | Professional Seam Kit — the only kit that includes flashing tape for penetrations. |
Every material explained — what it's for, and when you actually need it.
The waterproof base of the pond — 45-Mil for most builds, 60-Mil for heavy-duty jobs with boulders or high traffic. Everything else on this list exists to protect, join or finish it.
A padding layer that goes down before the liner, between it and the soil, so sharp rocks and roots can't puncture the rubber from underneath. Included in both Combo kits, or sold to pair with a liner-only purchase.
Bonds two liner sheets into one continuous piece for a pond wider than a single roll, or patches a tear in an existing liner. Comes in the Seam Kit and Professional Seam Kit, or as a standalone roll.
Seals the liner around fixed penetrations — skimmers, waterfall filters, pipes — where a flat seam tape can't wrap the shape. Included only in the Professional Seam Kit, or sold on its own.
Cleans and preps the rubber surface before any tape goes down. Skipping this step is the most common reason a seam fails to bond — it's included in every kit.
A brush- or tube-applied sealant for edges, terminations and anywhere a tape seam meets a hard surface, like a skimmer housing or rock edging.
Presses a freshly-applied tape seam down firmly and evenly, working out air bubbles that would otherwise weaken the bond over time.
Finish the install, seal around fixtures, or repair one down the line.

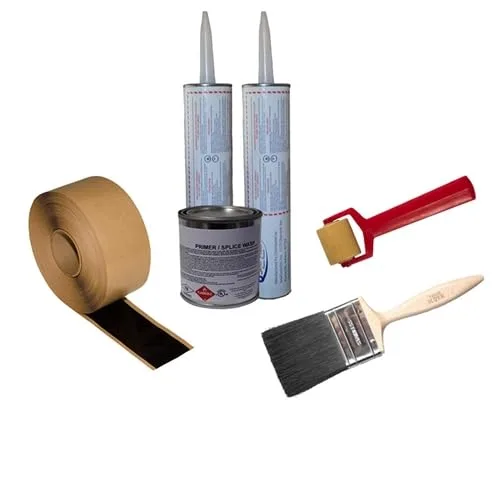

Double-stick EPDM seam tape, primer, a paintbrush, a seam roller and black lap caulk — everything needed to bond two liner sheets into one continuous piece for a pond wider than a single roll, or to patch an existing liner. Sold in 25 ft., 50 ft. and 100 ft. kit sizes.

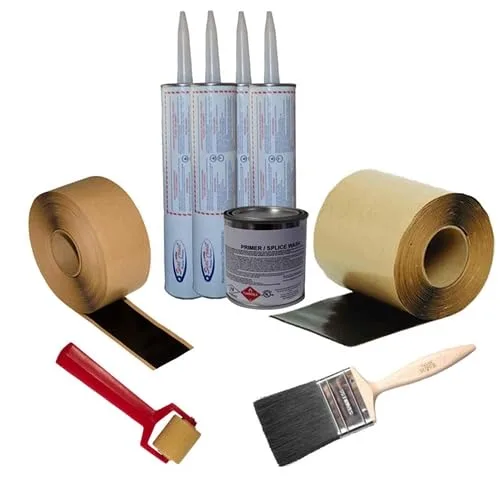

The same seam tape, primer, roller and lap caulk as the standard Seam Kit, plus 6-inch single-stick flashing tape for sealing around skimmers, waterfall filters and pipe penetrations that a flat seam tape can't wrap around. The kit to reach for when the liner needs to seal to a fixture, not just to itself.
Butyl-based EPDM tape sold on its own for anyone who already has primer and a roller on hand, or just needs more tape to finish a large seam or repair a puncture years after the original install. Both single-stick (flashing) and double-stick (seam) versions are available.
Real installation photos and the manufacturer's own material comparison.

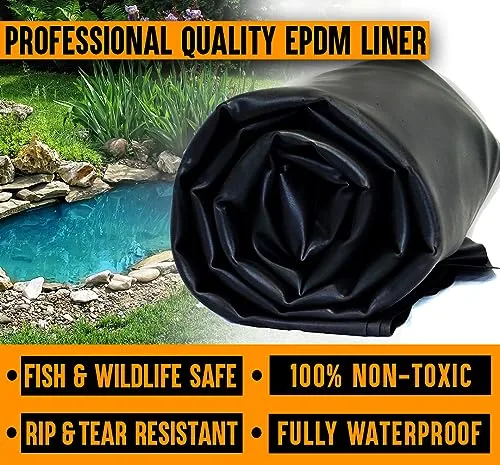

LifeGuard 45-Mil EPDM is certified fish and wildlife safe by Guardian Systems, Inc. It contains no plasticizers, so it won't leach chemicals into the water or turn brittle and crack the way lower-grade vinyl liners eventually do.

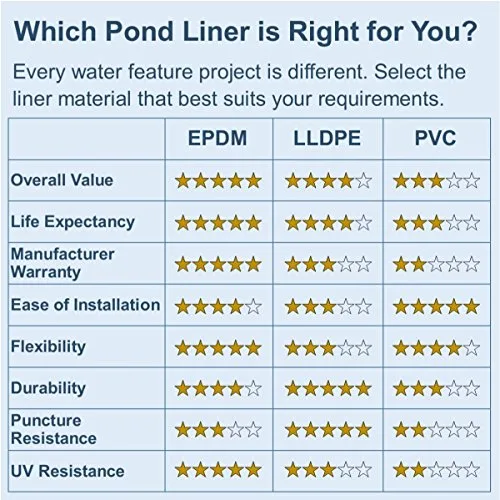

Anjon Manufacturing's own liner-material comparison rates EPDM highest on life expectancy, manufacturer warranty, flexibility and UV resistance against the two other common pond-liner materials — the main tradeoff is a slightly lower puncture-resistance score than LLDPE, which the UnderGuard underlayment is built to offset.

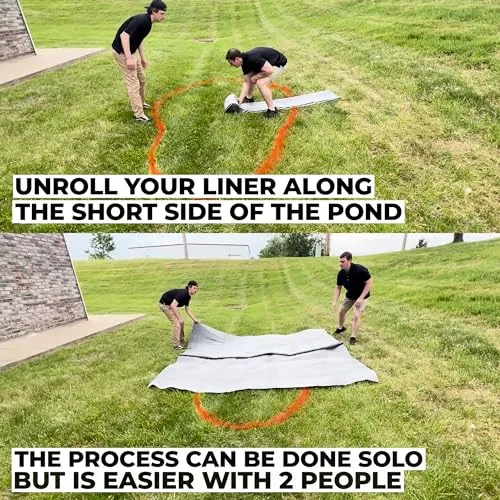

The manufacturer's own instructions are simple: unroll the liner along the short side of the pond first. It can be done solo, but having a second person keeps the sheet from dragging or catching on the excavation edges as it unfolds.

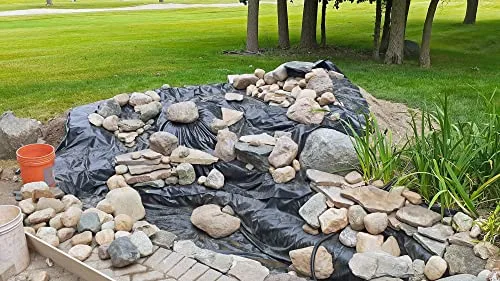

Once the liner is settled into the hole and trimmed, rocks, gravel and planting shelves hide the edges completely — the flexible EPDM sheet folds into corners and curves instead of holding a rigid shape that fights the design of the pond.
The manufacturer's own recommended process, in order.
Lay out the pond's shape on the ground with a garden hose or rope before digging anything — it's much easier to adjust the curve of a hose than to redig an excavation. Mark where any planting shelves or a deeper center section will go.
Use the formula: liner length = pond length + (2 × depth) + 2 ft., and liner width = pond width + (2 × depth) + 2 ft. The extra 2 ft. on each side gives enough overlap to anchor the edges under rocks or soil.
Shape the pond and clear sharp rocks or roots from the hole — anything left underneath can work through an unprotected liner over time.
If using the 45-Mil or 60-Mil Combo, roll out the UnderGuard geotextile underlayment first as a protective base layer between the soil and the liner.
This is the manufacturer's own recommended approach. It can be done solo, but a second person keeps the sheet from dragging or catching on the excavation edges as it unfolds.
Push the liner down into the excavation, letting it fold naturally into corners, curves and planting shelves — EPDM's flexibility means it conforms without heavy pleating.
The weight of the water helps the liner settle into its final shape before you trim the excess at the edges, so trim last rather than first.
Arrange rocks, gravel or flagstone over the trimmed liner edge to hold it in place and hide it from view — this is also where a seam or flashing tape kit comes in if the edging needs to seal against a skimmer or waterfall filter.
Let a newly filled pond run for several days before introducing fish, giving chlorine time to dissipate and the water to stabilize. Add water plants first — they help the ecosystem settle — then introduce fish gradually rather than all at once.
From the 45-Mil EPDM flagship's 680 verified ratings.
Customers find the pond liner to be of good quality, durable, and easy to work with — one customer noted they could walk on it with boots without tearing it. The product functions well and customers consider it worth the price. Feedback is mixed on liner weight, with several customers describing it as heavier than expected, and on leak-proofing, where opinions differ.
AI-generated summary from the text of customer reviews on Amazon, shown here as provided — individual review text is sign-in-gated on Amazon's own listing.
